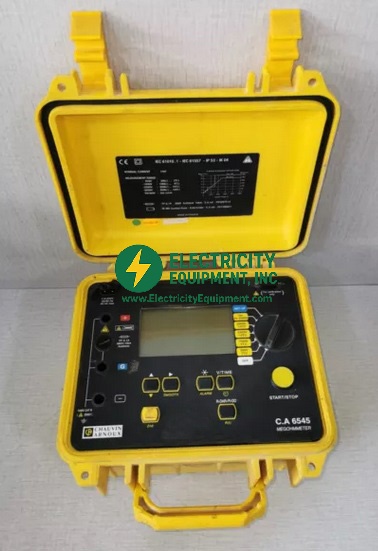

Chauvin Arnoux CA6545 Megohmmeters

Ideal for both qualitative and quantitative analysis of insulation resistance, this device can be used to measure from 30kΩ to 10TΩ with 4 fixed test voltages of 500, 1000, 2500 and 5000V. The test voltages are also programmable, with 40 to 5,100 in increments of 10V or 100V.

Features :

    Wide testing range from 30kΩ to 10TΩ
    4 fixed test voltages 500, 1000, 2500 and 5000
    Programmable test voltage positions
    Large size LCD screen
    Digital display + bargraph
    Automatic calculation of DAR, PI, DD ratios
    Tracing of R(t) curve
    Programmed test duration
    Lock down test voltages
    Smooth function
    Programmable alarms
    Rechargeable NiMH batteries last for 30 days

Includes :

    Chauvin Arnoux CA6545 Digital Megohmmeter
    Carrying Bag
    2 x 3m Safety Leads with HV Plug and HV Crocodile Clip (Red/Blue)
    Guarded Safety Lead (0.35m) with HV Plug and HV Plug with Rear Connection
    Lead with Rear Connection (Blue, 0.35m)
    Mains Power Cable (2m)
    Simplified Operation Manual
    Operating Manual in 5 Languages
