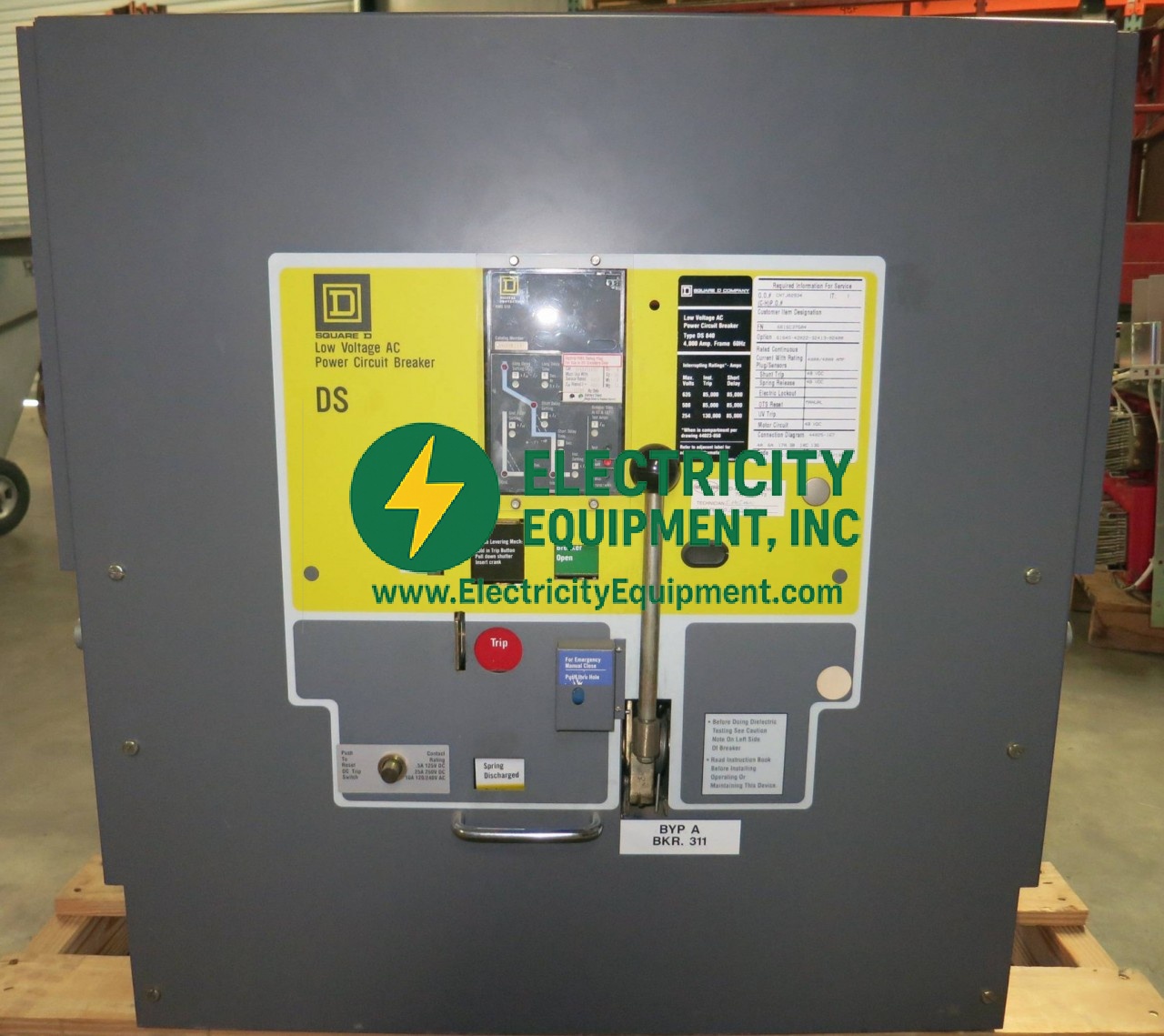

Square-D RMS510 DS-840 LSIG Digitrip EO/DO Air Cicuit Breaker

Specifications :

Square D Digitrip RMS 510
S56LSIG / RP6D40A400 / 4000A
Square D Low Voltage AC Power Circuit Breaker
Type: DS 840 - 4000 Amp Frame / 60 Hz
Interrupting Ratings :
635 Max Volts / 85,000 Inst. Trip / 85,000 Short Delay
508 Max Volts / 85,000 Inst. Trip / 85,000 Short Delay
254 Max Volts / 130,000 Inst. Trip / 85,000 Short Delay
When in Compartment per drawing 44023-850
Option: 61645-42022-32413
Rated Continuous Current with rating Plug/Sensors: 4000/4000 AMP
Shunt Trip: 48 VDC
Spring Release: 48 VDC
Motor Circuit: 48 VDC
OTS Reset: Manual
Connection Diagram: 44025-16
Square D RMS 510 Digital Protection Trip:
Catalog Number: S56LSIG (B)
Digitrip RMS Rating Plug
Breaker Dimensions: 31x27x30 (h) - Breaker Weight: 445 lbs
